Extraction Containment

C1D1 Extraction Booth

Modular Extraction Booths built to UL 1389 standards. Emergency purge, solvent detection, customizable airflow.

ENGINEERED FOR COMPLIANCE

Complete Hazardous Control Solution

BOEXCO's C1D1 Extraction Booth offers professional extraction facilities a scalable approach to compliant hazardous control areas. These modular designs fit a variety of sizes and heights to accommodate challenging installation scenarios. Every booth is engineered for safety, compliance, and efficiency with the highest-quality domestic materials and components.

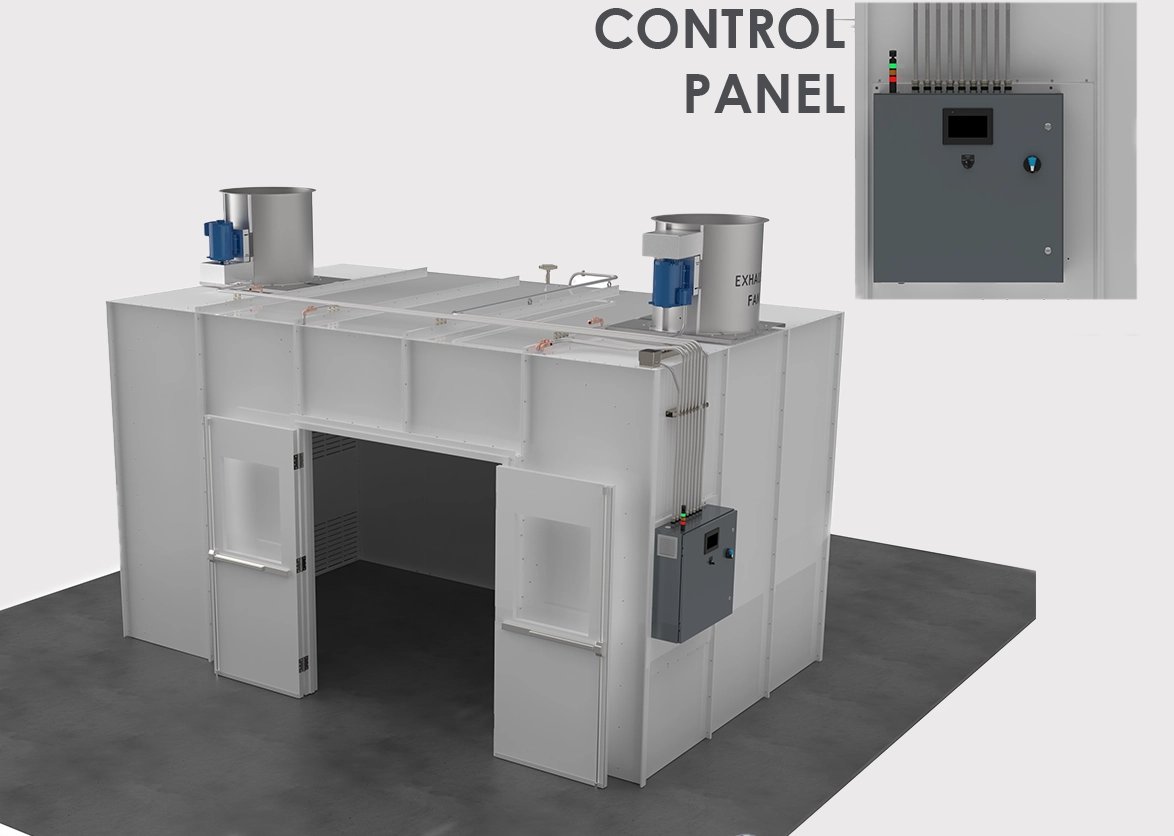

C1D1 Booth Render with Control Panel

3D Render with Control Panel

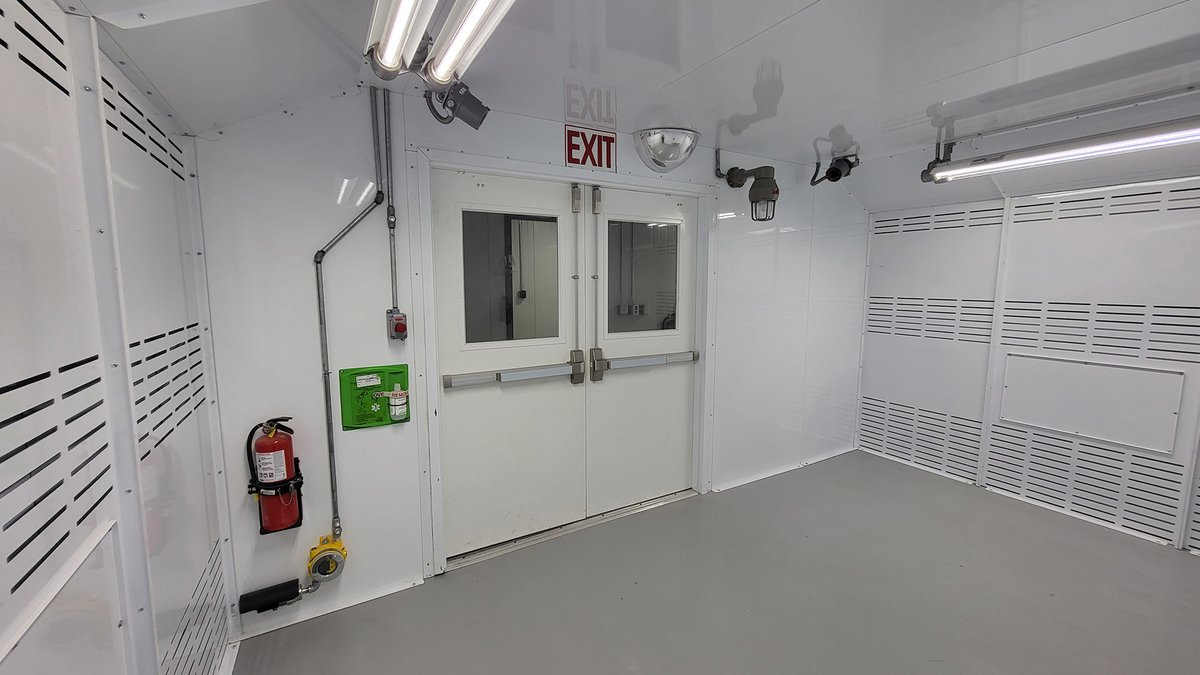

C1D1 Booth Exterior Doors

Exterior Doors

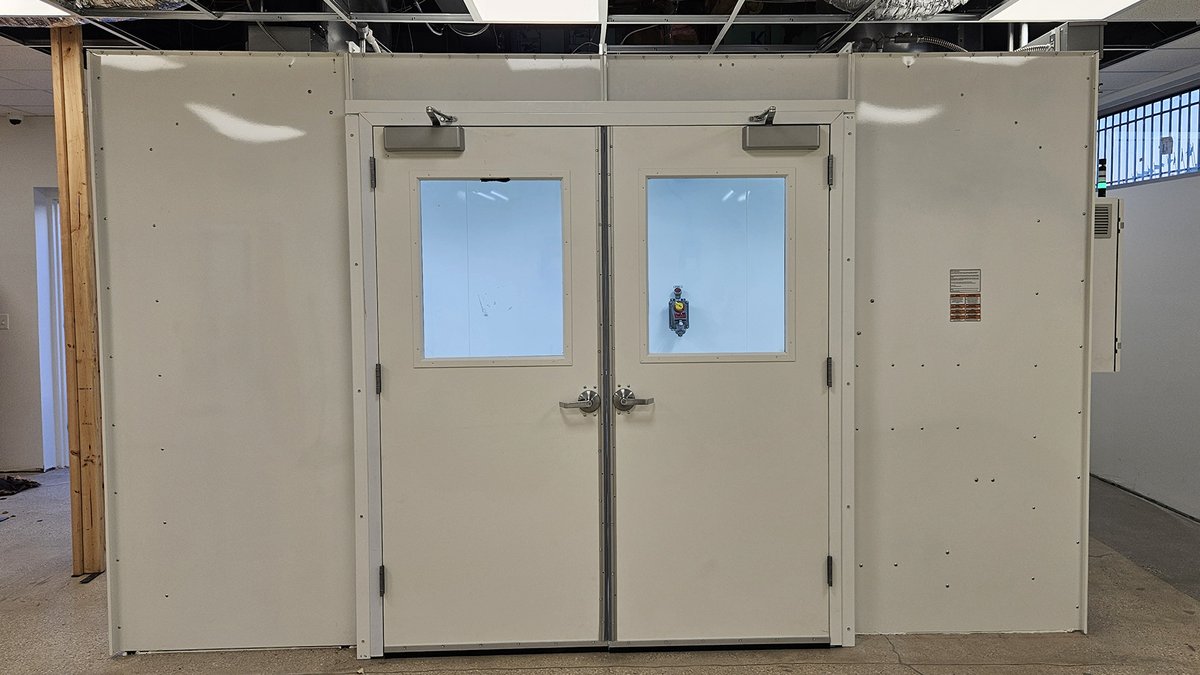

C1D1 Booth Interior Clean Room

Interior Clean Room

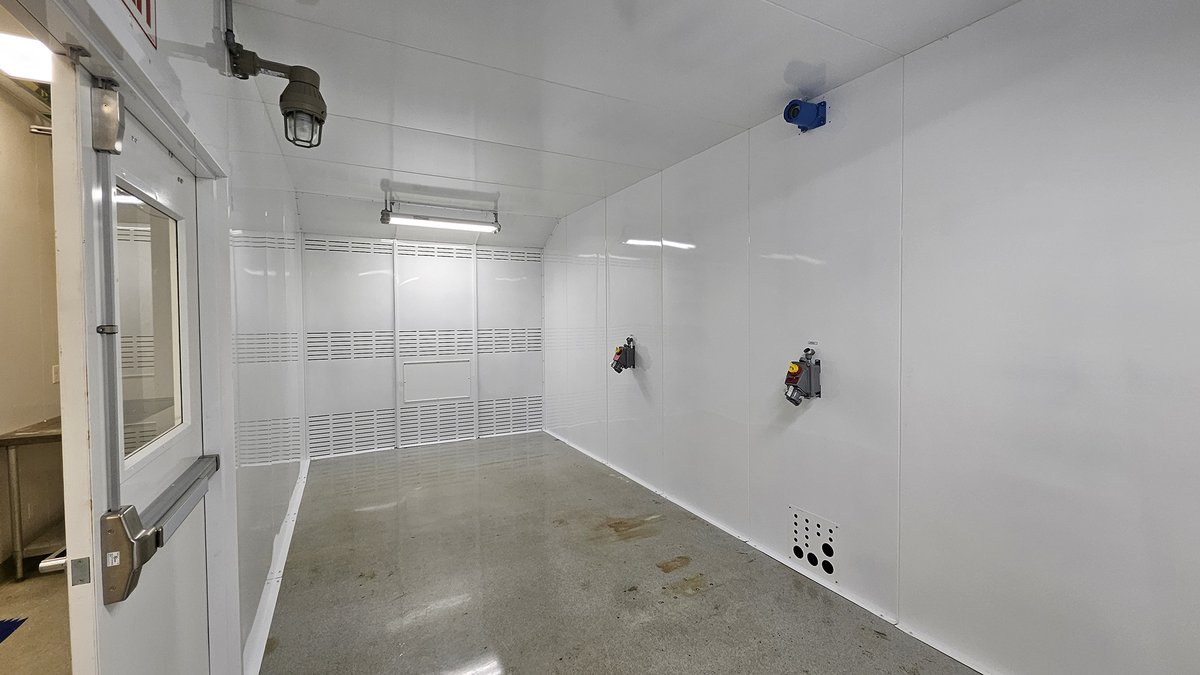

C1D1 Booth Interior View

Interior View

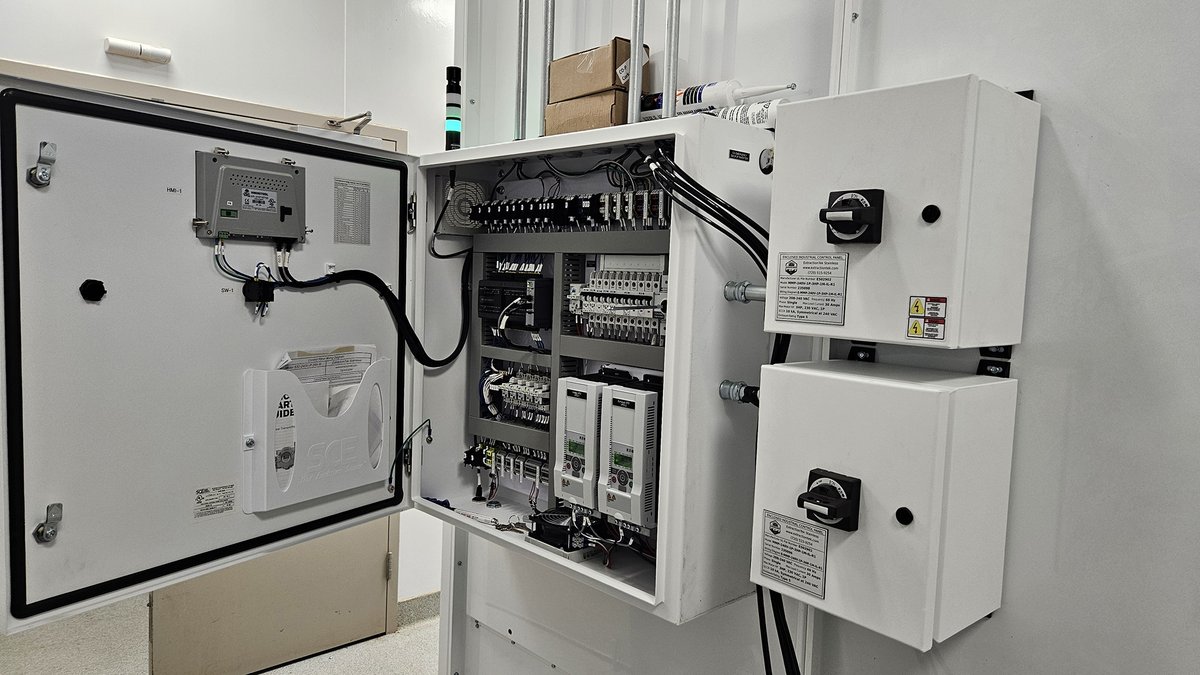

C1D1 Booth Control Panel

Control Panel

KEY ADVANTAGES

What Sets It Apart

Custom Design Options

Deluxe and basic design options with short and tall height options to fit your facility.

Expert Installation

On-site installation and commissioning by BOEXCO experts. No surprises, full support.

Emergency Purge

Emergency purge button activates up to 10,000 CFM, evacuating the booth in 5 to 15 seconds.

Solvent Detection

Integrated solvent detection system with alarms at 10 percent and 20 percent LFL.

Customizable Airflow

Adjustable airflow up to 10,000 CFM accommodates the most stringent municipal codes.

Equipment Integration

Custom equipment interlocks and ancillary penetration panel for complete integration.

TECHNICAL SPECIFICATIONS

Models and Dimensions

Five standard models accommodate different facility layouts. Base flow rate of 1,500 CFM maintains negative pressure. All models available in 8'0"H option.

Model Dimensions Cubic Feet Square Feet
B-DT120 9'6"W x 8'7"L x 9'5"H 793.4 83.52
B-DT160 9'6"W x 12'1"L x 9'5"H 1,103.5 116.16
B-DT200 9'6"W x 15'4"L x 9'5"H 1,404.4 147.84
B-DT240 9'6"W x 18'7"L x 9'5"H 1,705.4 179.52
B-DT280 9'6"W x 22'1"L x 9'5"H 2,015.5 212.16
REGULATORY COMPLIANCE

Built to Standard

UL Listed to UL 1389 for C1D1 Locations with appropriate ductwork. Complies with all major regulatory frameworks.

NFPA 1
NFPA 7
NFPA 55
NFPA 58
NFPA 33
UL 1389
