What is the HYDRA extraction system?

The HYDRA is a fully automated modular hydrocarbon extraction platform designed for high-volume processing. It scales from 100L to 300L material columns and is engineered for compliance, safety, and throughput.

What column sizes does the HYDRA system support?

The HYDRA supports 100L, 200L, and 300L material columns, allowing operators to scale capacity to their processing requirements.

Is the HYDRA extraction system automated?

Yes. The HYDRA features a fully automated PLC-controlled cycle with complete instrumentation, safety interlocks, and a touchscreen HMI interface.

HYDRA Automated Hydrocarbon Extraction System | Industrial Botanical Processing

System Overview

HYDRA 100, 200, and 300 — Built for Scale

The HYDRA 100, 200, and 300 are fully automated hydrocarbon extraction and falling film systems, modular and custom-designed to meet your unique processing needs. Available in three configurations scaled to your throughput requirements, with control options via a wall-mounted HMI or a wireless control pad.

Engineered for cold hydrocarbon extraction of botanicals, the HYDRA emphasizes ease of use, efficiency, and safety. Experience customizable extraction with unparalleled monitoring, analytics, and control over your finished product.

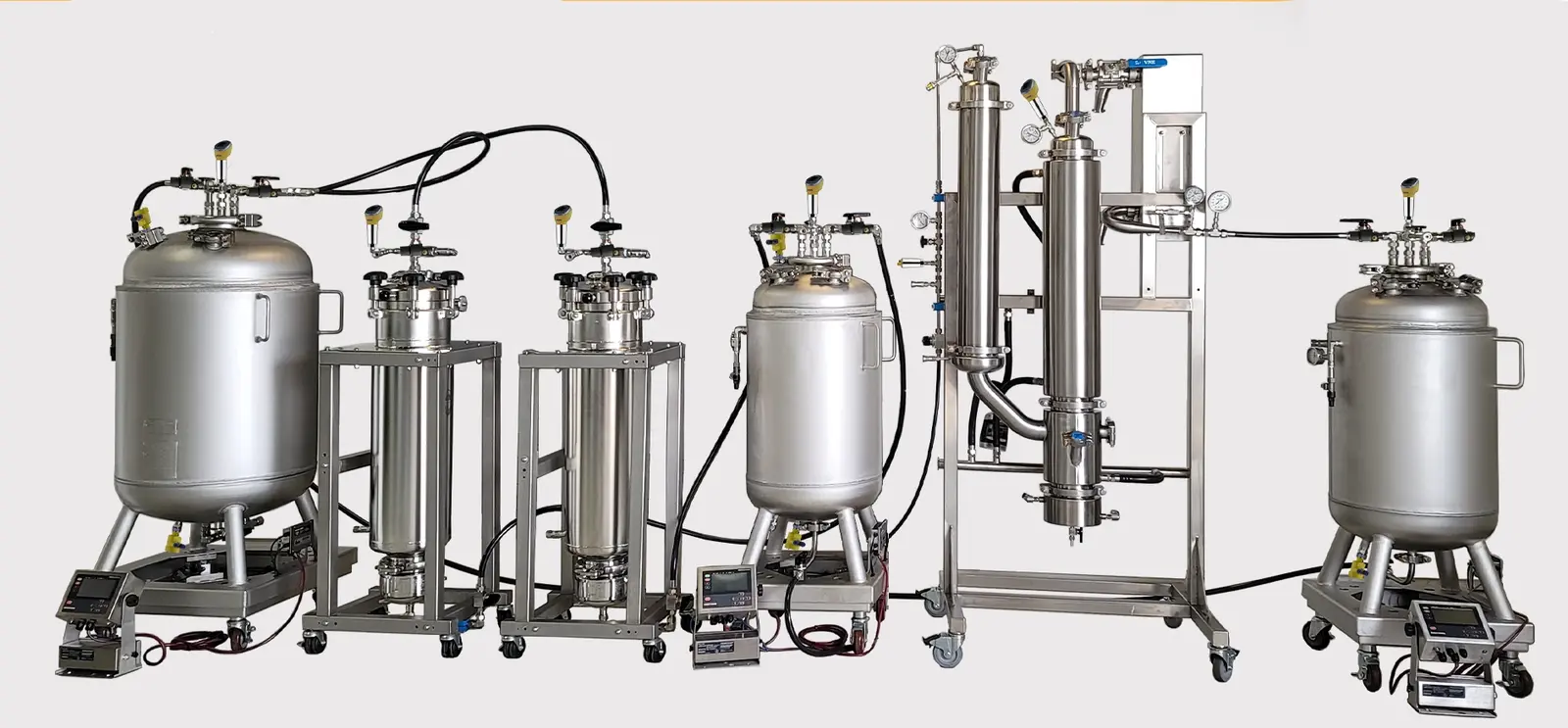

HYDRA Extraction System — Full Configuration

Key Advantages

What Sets the HYDRA Apart

Modular Design

Our modular system makes it easy to custom design what you need to fulfill your unique processing requirements. Scale up without starting over.

Wireless Control Pad

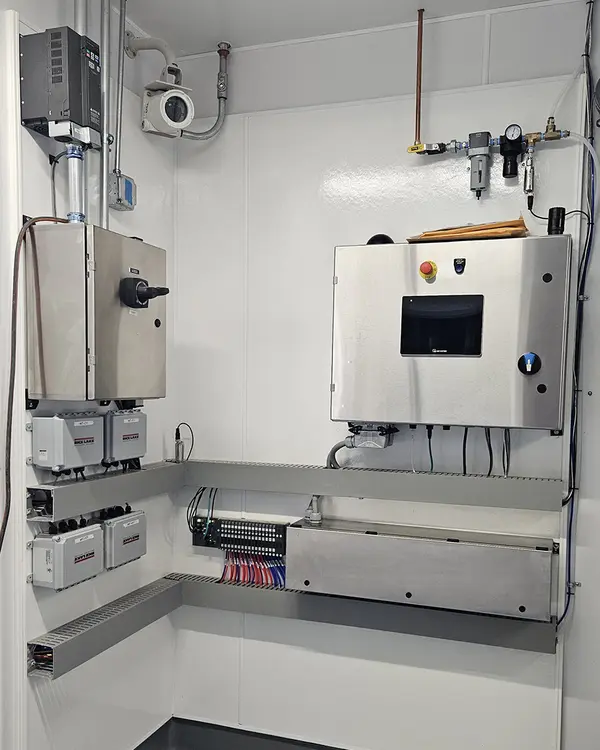

Operate from a wall-mounted HMI or a wireless control pad. Full system control from anywhere in the facility.

High Capacity Processing

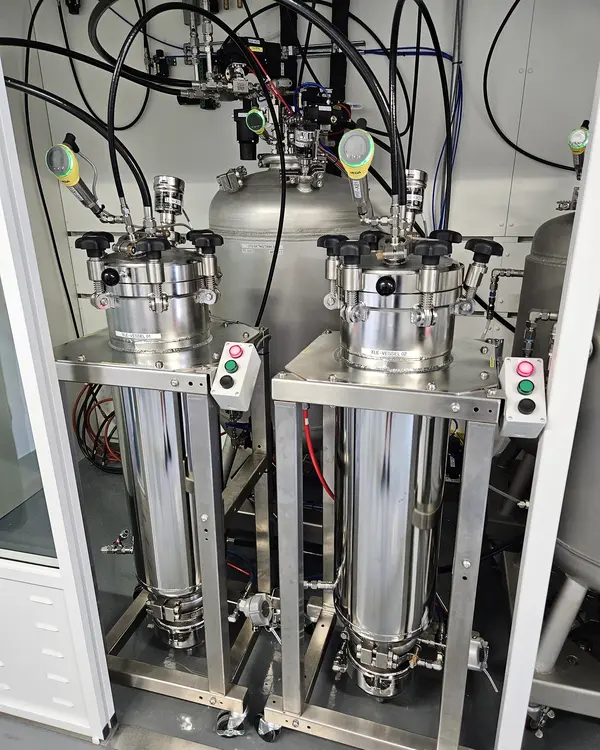

Engineered for cold hydrocarbon extraction of botanicals at scale. 150 and 300 lb solvent operating vessels with one or multiple 50L extraction vessels.

Ease of Use and Safety

Unparalleled monitoring, analytics, and control over your finished product. Operator safety visual alarms and automated controls throughout.

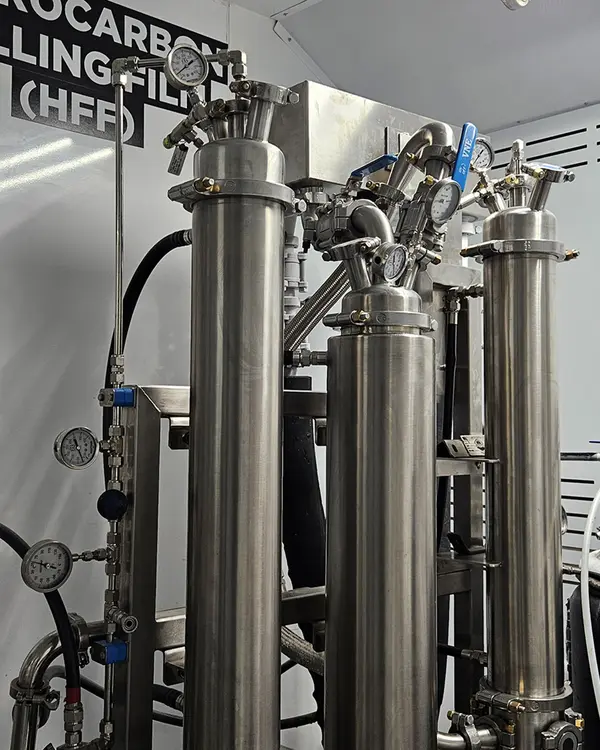

Hydrocarbon Falling Film

Integrated hydrocarbon falling film with 120 lb collection capacity for high-efficiency extraction and solvent recovery.

Closed Loop System

Closed loop system for propane and butane with active or passive recovery options and optional compressor assist on all vessels.

Regulatory Compliance

Meets or Exceeds All Industry Listed Standards

The HYDRA 100, 200, and 300 are engineered to comply with all major regulatory frameworks for hazardous location extraction systems.

ASME Section VIII

IFC 3904.4

NFPA 1:38.6.1.5.6.1

3-A Sanitary Standard

Class 1 Division 1

Ready to Spec a HYDRA System?

Contact Matthew Ellis at BOEXCO for pricing, configurations, and facility requirements.

sales@boexco.com ✦ 720.412.5194

Actual throughputs may vary depending on biomass, grind size, material potency, system design, and operating protocols.
